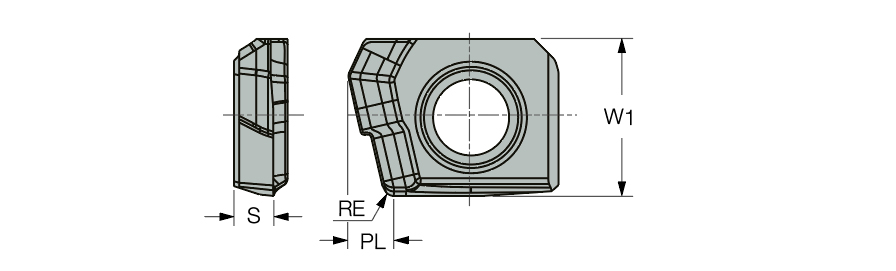

| Insert Width (W1) | 4.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Thickness (S) | 1.24 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Gun Drill Inserts |
| Coating | TiAlCrN | Measurement Type | Metric |
| Grade | IC948 | Body Material | Carbide |
| Application | | Gundrills | | Unit | M |
Product Features

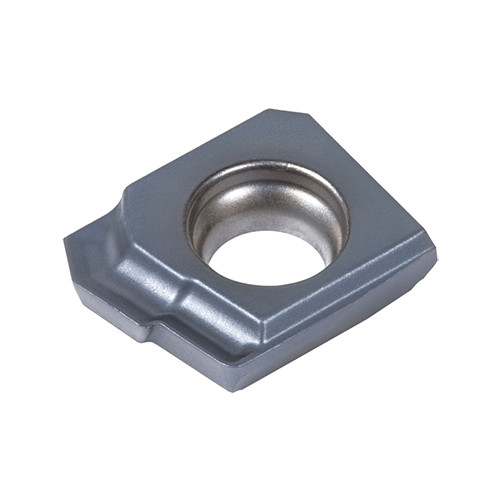

| Family Description | Deep drilling inserts with single chip splitting cutting edge and a wiper for high hole surface quality. | COO | Japan |
| Remarks | For cutting conditions, click on More Info |
Shipping Info
Weight per item
0.0070
