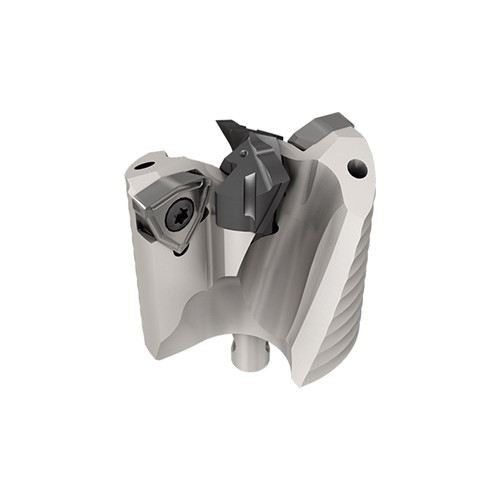

MD-MNC 420-189-W7
Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
Price: Log in For Price

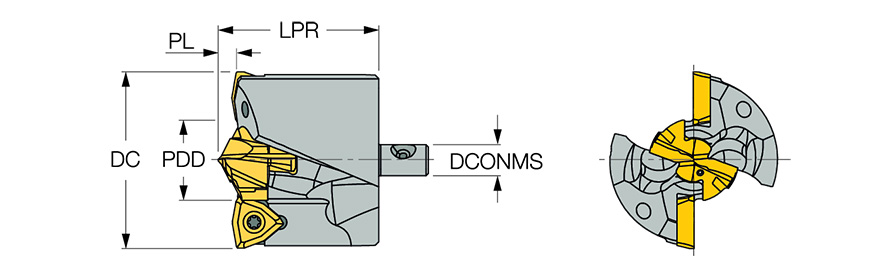

| Cutting Diameter (DC) | 42 mm | Master Insert Identification (MIID) | ICP 189-MNC 4F |
| Application | | Drilling | | Point Length (PL) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 7.1 mm | Body Material | Steel |
| Protruding Length (LPR) | 35.3 mm | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
Weight per item
0.2940
