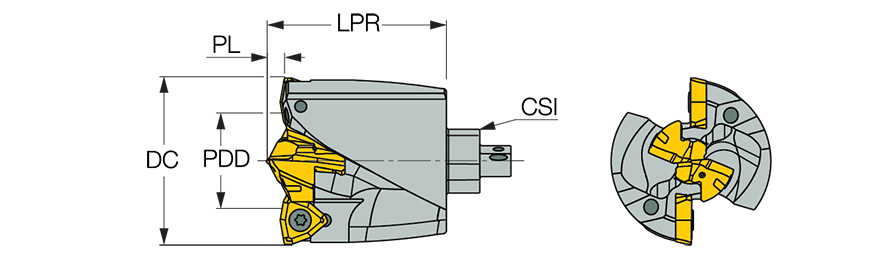

| Cutting Diameter (DC) | 2″ | Master Insert Identification (MIID) | ICP 0941-MNC 4F |
| Application | | Drilling | | Point Length (PL) | 0.228″ |
| Insert Seat Size Code (SSC) | 8 | Body Material | Steel |
| Protruding Length (LPR) | 2.122″ | Decimal Equivalent | 2″ |
| Measurement Type | Inch | Unit | I |
Product Features

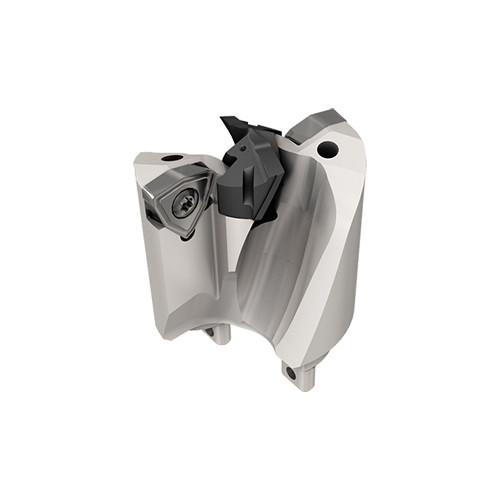

| Family Description | Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
Weight per item
1.3492
