SD D32-05-R2.5-SP15 IC908

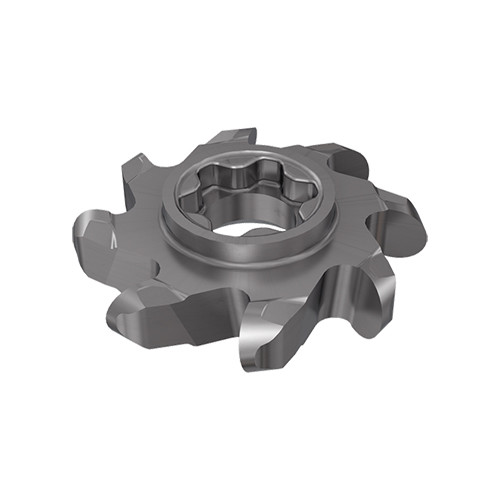

Interchangeable solid carbide T-Slot milling heads, with full radius.
Price: Log in For Price

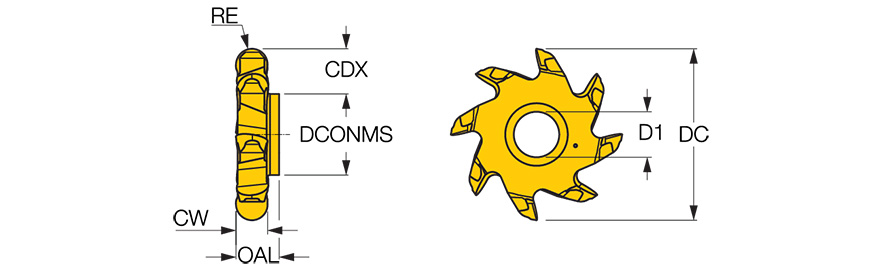

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 31.7 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 8.4 mm |
| Corner Radius (RE) | 2.5 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 5 mm | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Body Material | Carbide |
| Overall Length (OAL) | 8 mm | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads, with full radius. | FamilyName | SD-R-SP |
| Remarks | For machining recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0460
Name
Solid End Mill Heads
FamilyName
SD-R-SP
BrandName
Iscar
