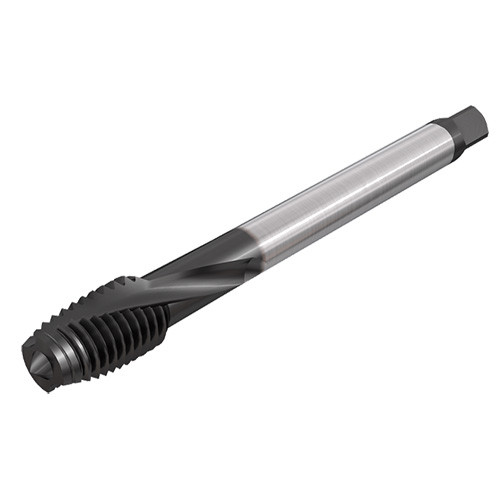

TPSN M-6X1.0-A HEDLC
HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys.
Price: Log in For Price

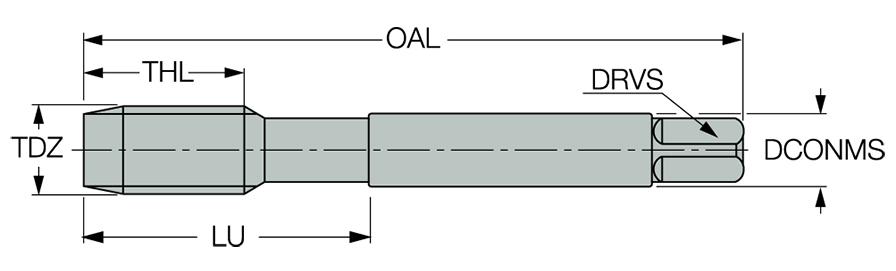

| Thread Diameter Size (TDZ) | M6 | Measurement Type | Metric |
| Thread Pitch (TP) | 1 mm | Grade | HEDLC |
| Overall Length (OAL) | 80 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Thread Cutting Part Length (THL) | 12 mm | Body Material | HSS |
| Usable Length (LU) | 30 mm | Drive Size (DRVS) | 4.9 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Thread Size | M6 × 1 |
| Flute Count (NOF) | 3 | Unit | M |
| Standard | DIN 371 |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys. | COO | Hungary |
| Remarks | The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Weight per item
0.0120
