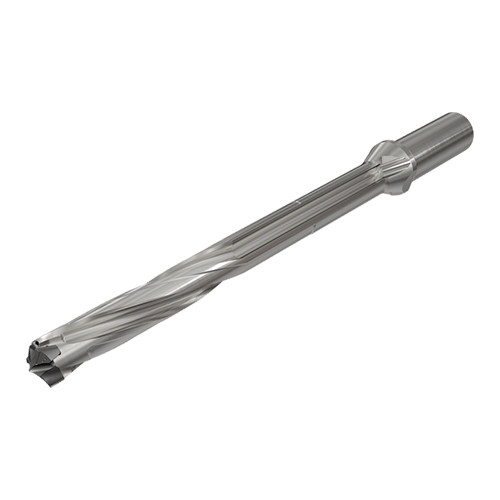

D3N 0945-945-125R-10D
Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD
Price: Log in For Price

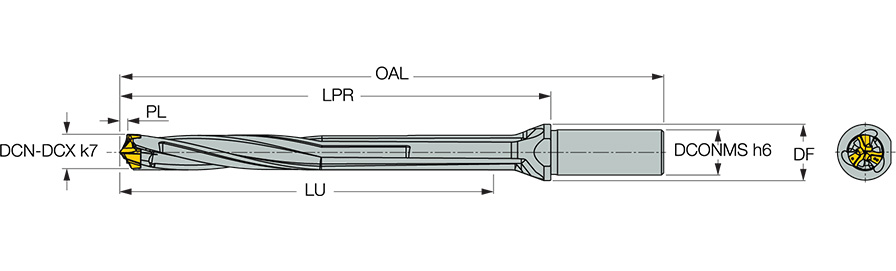

| Cutting Diameter (DC) | 0.945″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 9.654″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 240-IQ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.205″ |
| Insert Seat Size Code (SSC) | 24 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.945″ | Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Maximum (DCX) | 0.984″ | Decimal Equivalent | 0.945″ |
| Protruding Length (LPR) | 10.69″ | Unit | I |
| Overall Length (OAL) | 13.05″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.8629
