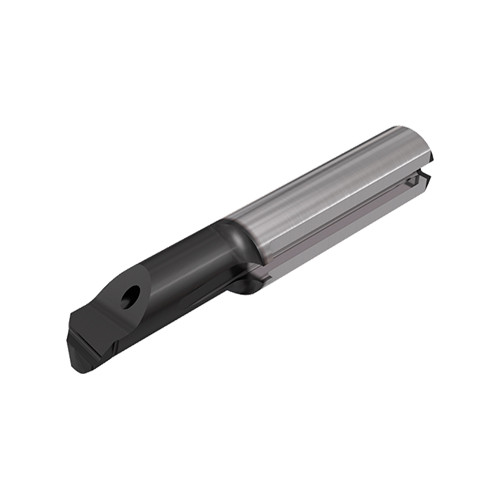

PICJ RT20D40R10-20C IC908
PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling
Price: Log in For Price
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.1 mm |
| Minimum Bore Diameter (DMIN) | 4 mm | Cutting Depth Maximum (CDX) | 0.3 mm |
| Functional Length (LF) | 34 mm | Functional Width (WF) | 1.5 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Boring and Profiling | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Front End Width (a) | 3.5 mm |
Product Features
| Family Description | PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling | FamilyName | PICJ R/LT20-C |
| Remarks | All left-hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0070
Name
Solid Boring Bars
FamilyName
PICJ R/LT20-C
BrandName
Iscar
