27IR 4 API 503 IC250
External API - oil thread, round profile (API Spec 7-2) laydown threading inserts.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

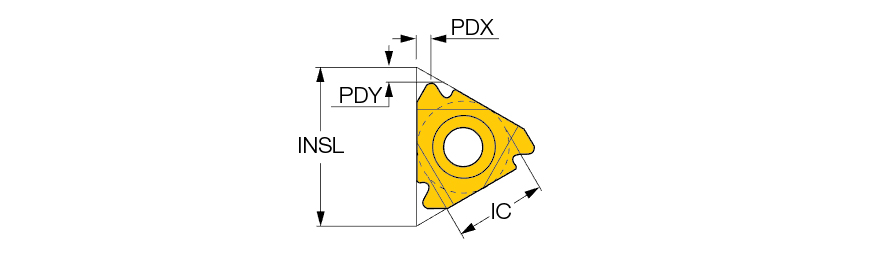

| Inscribed Circle Diameter (IC) | 15.88 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 27.5 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 0.64 mm | Body Material | Carbide |
| Grade | IC250 | Thread Form Type (THFT) | API |
| Coating | TiCN+TiN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 2.1 mm |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | External API - oil thread, round profile (API Spec 7-2) laydown threading inserts. | FamilyName | IR/L-API |
| Remarks | For Insert Identification System, click on More Info 0.050, API Spec 74-1994 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0230
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-API
BrandName
Iscar
