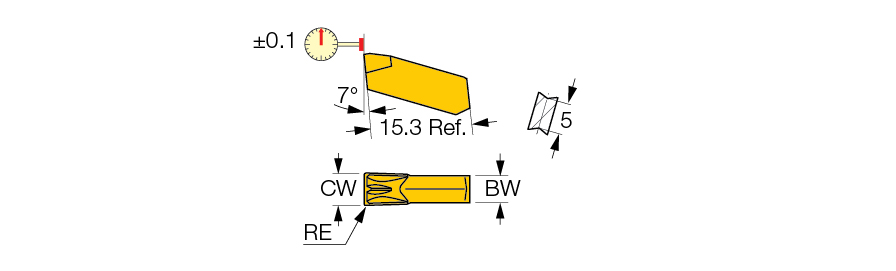

| Cutting Width (CW) | 3.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.22 mm | Chip Breaker Type | W |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | |
Product Features

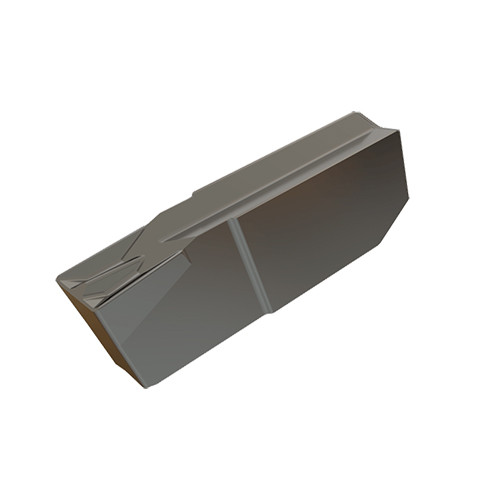

| Family Description | Parting & grooving single-sided insert. W-type chipformer, with a center ridge that forms double cavities on the rake face. Most efficient on alloy steel. | FamilyName | GIM-W |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0030
Name
Groove/Turn Indexable Inserts
FamilyName
GIM-W
BrandName
Iscar
