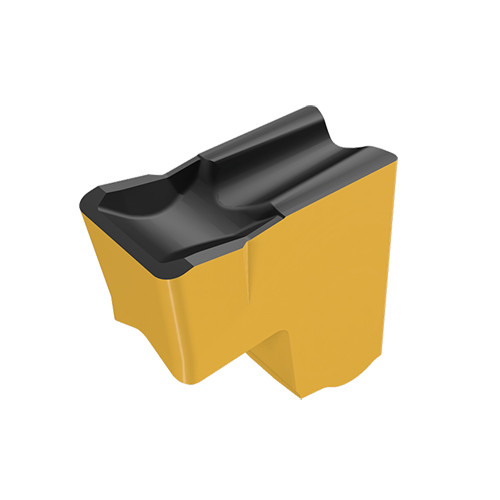

TAG N3HF IC1030
TAG N-HF Reinforced cutting edge and bigger corner radius designed for extremely high feeds, suitable for steel and alloy steel.
Price: Log in For Price

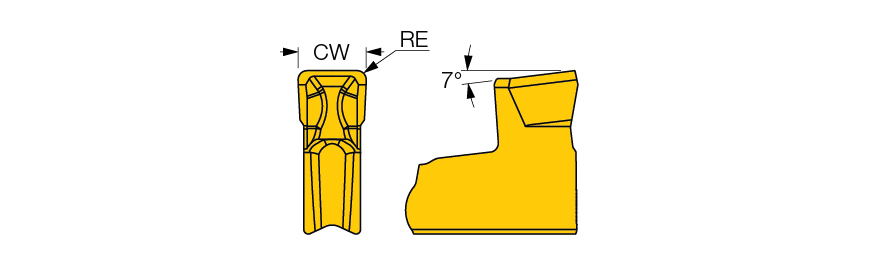

| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.35 mm/rev |
| Corner Radius (RE) | 0.4 mm | Min. Grooving Feed (fg(min)) | 0.25 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | HF |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1030 | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Applicable Material | | Steel | Stainless Steel | | Unit | M |
Product Features
| Family Description | TAG N-HF Reinforced cutting edge and bigger corner radius designed for extremely high feeds, suitable for steel and alloy steel. | FamilyName | TAG N-HF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0134
Name
Parting Off Indexable Inserts
FamilyName
TAG N-HF
BrandName
Iscar
