D3N 0551-275-063R-5D

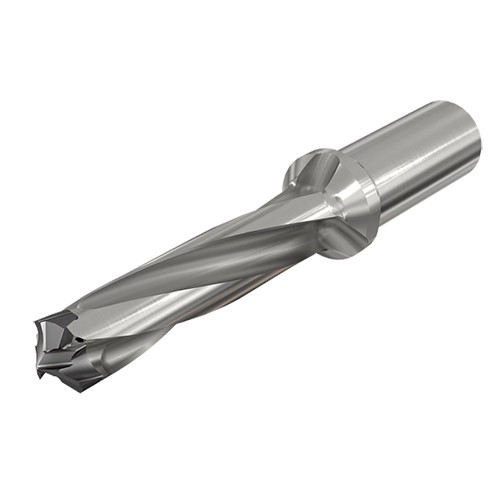

Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 5xD
Price: Log in For Price

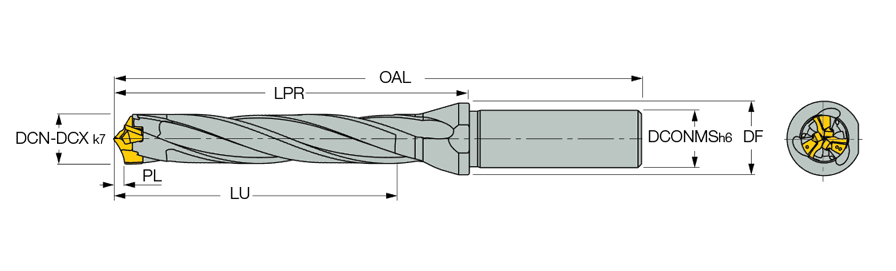

| Cutting Diameter (DC) | 0.551″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.878″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 140 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.1221″ |
| Insert Seat Size Code (SSC) | 14 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.551″ | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Maximum (DCX) | 0.567″ | Decimal Equivalent | 0.551″ |
| Protruding Length (LPR) | 3.901″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 5.791″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.89″ | Unit | I |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3968
