DCN 050-015-06C-3D

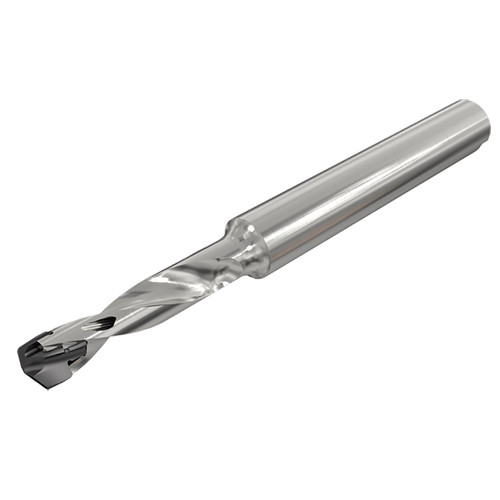

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

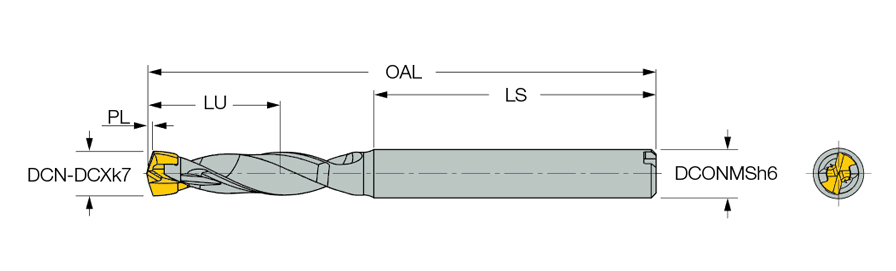

| Cutting Diameter (DC) | 5 mm | Shank Length (LS) | 35 mm |
| Usable Length (LU) | 15.73 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 050 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Point Length (PL) | 0.73 mm |
| Insert Seat Size Code (SSC) | 5.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 5 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Diameter Maximum (DCX) | 5.49 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 27.33 mm | Unit | M |
| Overall Length (OAL) | 61.3 mm |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0190

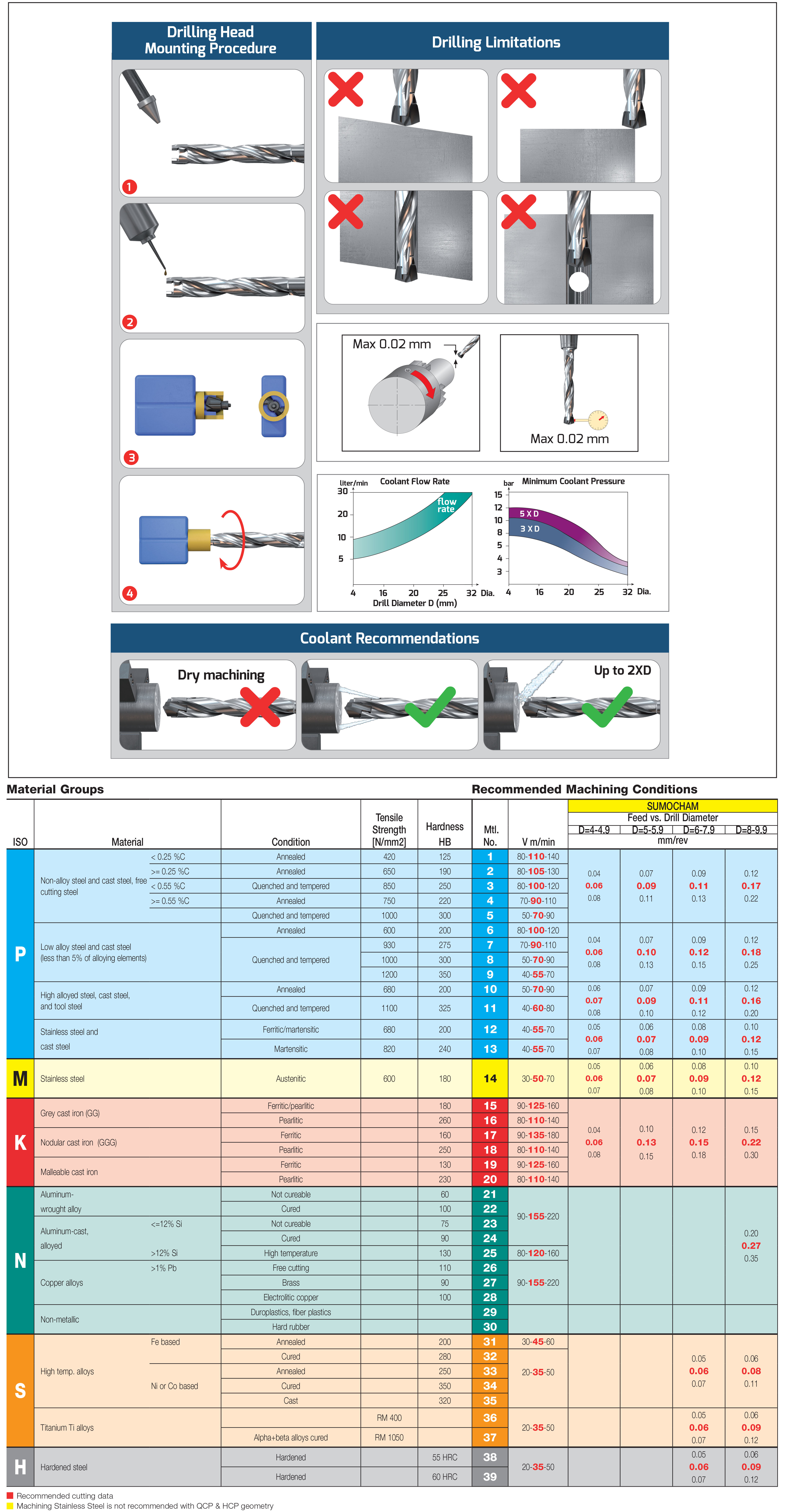

Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
