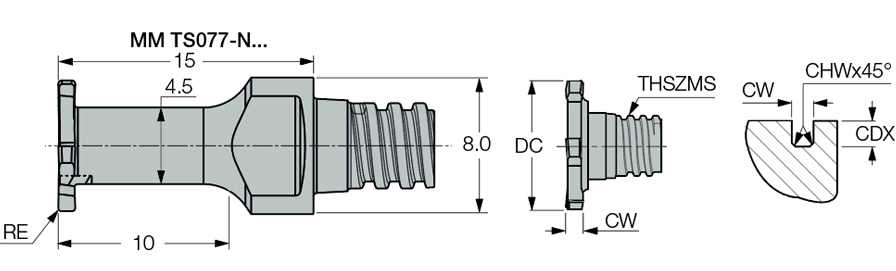

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 9.25 mm |
| Cutting Diameter (DC) | 10.5 mm | Grade | IC928 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 2 mm | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 2 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 15 mm | Unit | M |
Product Features

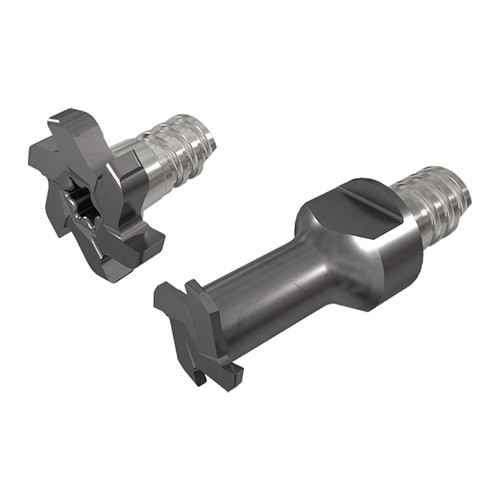

| Family Description | MULTI-MASTER interchangeable solid carbide T-Slot milling heads | FamilyName | MM TS-N |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0300
Name
Solid End Mill Heads
FamilyName
MM TS-N
BrandName
Iscar
LocalField3
8209000030
