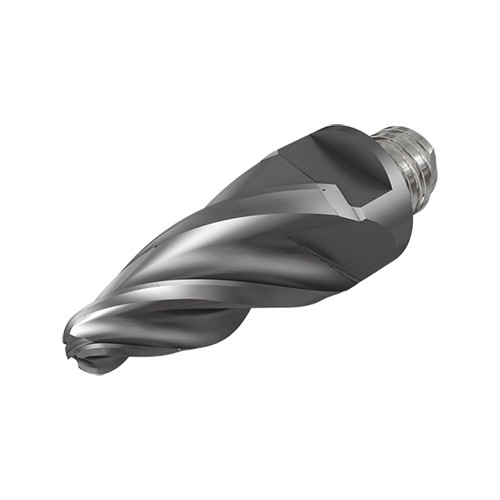

MM EOB500R157R750A82-4T08 IC908
Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Profiling. For Semi-Finish & Finishing Applications.
Price: Log in For Price

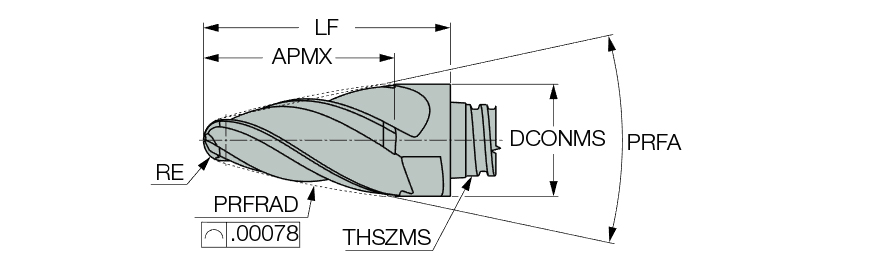

| Application | | Profiling | | Grade | IC908 |
| Cutting Diameter (DC) | 0.243″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Angle (PRFA) | 16 Degrees |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 82 Degrees |
| Corner Radius (RE) | 0.157″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Diameter Maximum (DCX) | 1/2″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.82″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Functional Length (LF) | 1.063″ | Unit | I |
| Overall Length (OAL) | 1.376″ |
Product Features
| Family Description | Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Profiling. For Semi-Finish & Finishing Applications. | FamilyName | MM EOB |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0794
Name
Solid End Mill Heads
FamilyName
MM EOB
BrandName
Iscar
