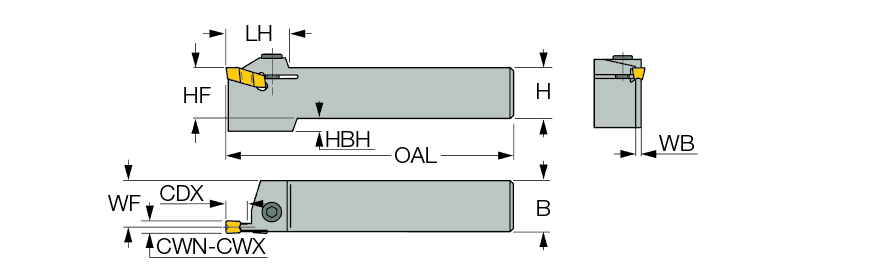

| Cutting Width Minimum (CWN) | 0.11″ | Head Length (LH) | 1″ |
| Cutting Width Maximum (CWX) | 0.157″ | Overall Length (OAL) | 7″ |
| Cutting Depth Maximum (CDX) | 0.36″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1-1/4″ | Body Material | Steel |
| Shank Width (B) | 1-1/4″ | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 0.094″ | Measurement Type | Inch |
| Functional Width (WF) | 1.2″ | Unit | I |
Product Features
| Family Description | External tools for turning, grooving and parting. | FamilyName | GHDR/L (short pocket) |

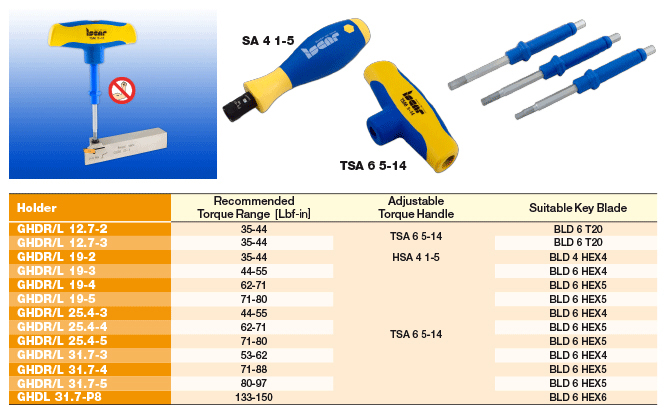

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.9895
Name

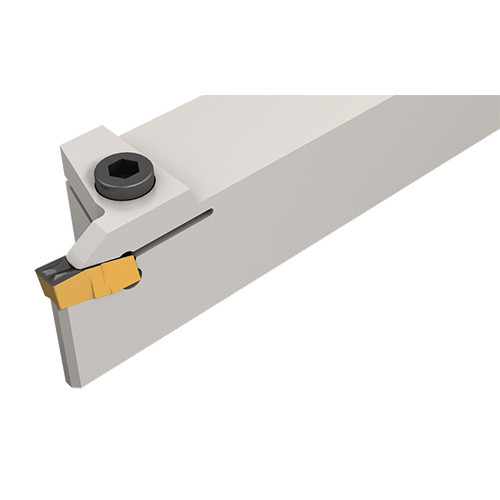

Groove/Turn Indexable Holders
FamilyName
GHDR/L (short pocket)
BrandName
Iscar
