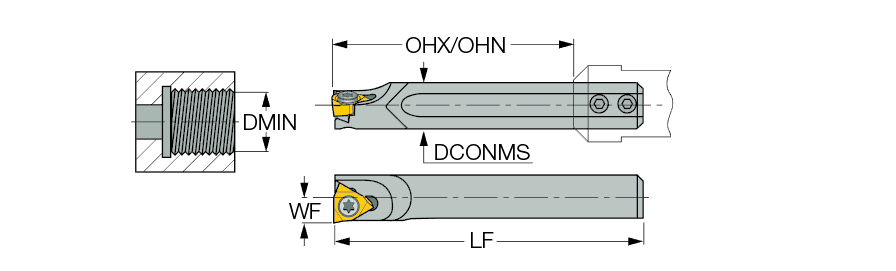

| Minimum Bore Diameter (DMIN) | 7 mm | Body Material | Carbide |
| Functional Width (WF) | 3.9 mm | Tool Type | Internal Indexble -Turn Tool |
| Overall Length (OAL) | 59 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Unit | M |
| Application | | Internal Threading lay down | |
Product Features

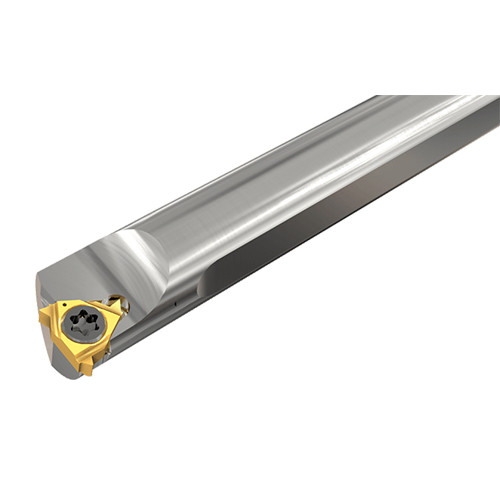

| Family Description | Solid carbide bars for internal turning and threading | FamilyName | MGSIR/L |
| Remarks | In order to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0400
Name
Groove/Turn Indexable Holders
FamilyName
MGSIR/L
BrandName
Iscar
Related Documentation
