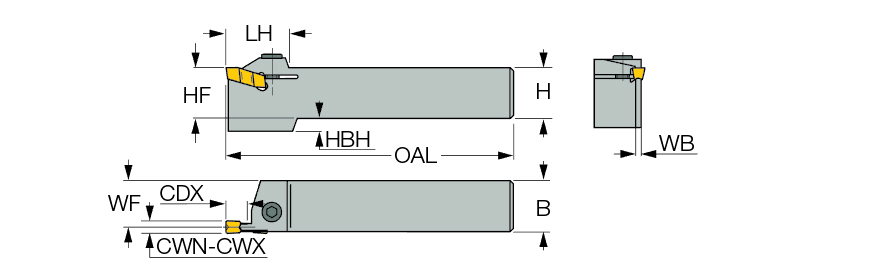

| Cutting Width Minimum (CWN) | 2.8 mm | Overall Length (OAL) | 110 mm |
| Cutting Width Maximum (CWX) | 4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 9 mm | Body Material | Steel |
| Shank Height (H) | 16 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 16 mm | Measurement Type | Metric |
| Body Width (WB) | 2.4 mm | Head Bottom Offset Height (HBH) | 4 mm |
| Functional Width (WF) | 14.8 mm | Unit | M |
| Head Length (LH) | 26 mm |
Product Features
| Family Description | External tools for turning, grooving and parting. | FamilyName | GHDR/L (short pocket) |

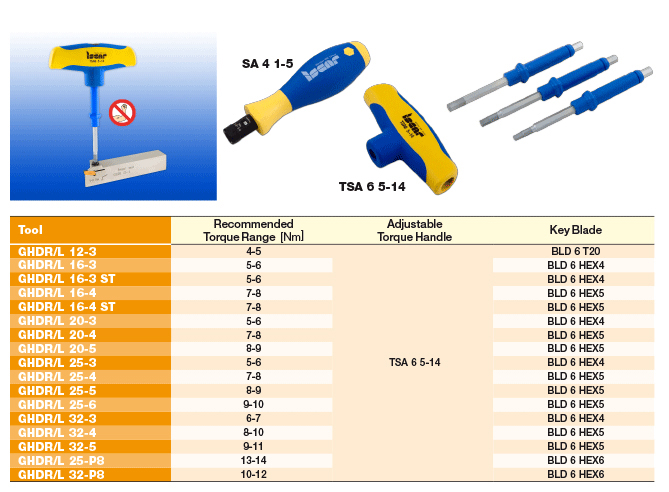

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2480
Name
Groove/Turn Indexable Holders
FamilyName
GHDR/L (short pocket)
BrandName
Iscar
