| Shank Width (B) | 1″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 1″ | Head Length (LH) | 1-1/2″ |
| Cutting Depth Maximum (CDX) | 0.47″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 1.02″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 1-1/2″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.18″ | Unit | I |
| Overall Length (OAL) | 6″ |
Product Features
| Family Description | Integral toolholders for external facing | FamilyName | HFHR/L-3T |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.6689
Name
Face Groove/Turn Indexable Holders
FamilyName
HFHR/L-3T
BrandName
Iscar
Related Documentation

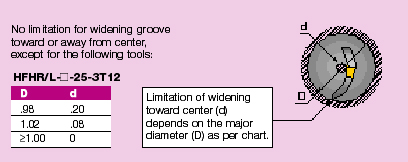

No limitation for widening groove outward/toward center, except for the tools above.
