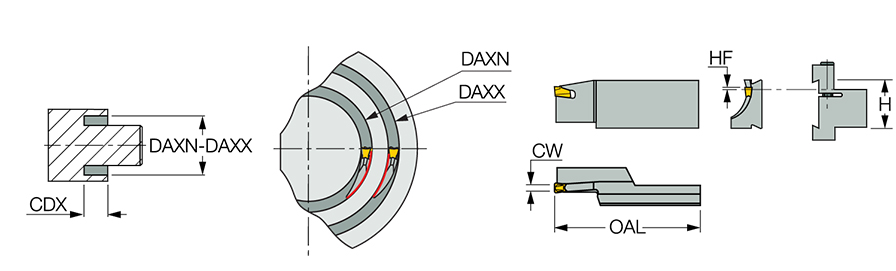

| Shank Height (H) | 32 mm | Overall Length (OAL) | 91 mm |
| Cutting Depth Maximum (CDX) | 24 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 3 mm | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 55 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 46 mm | Unit | M |
Product Features

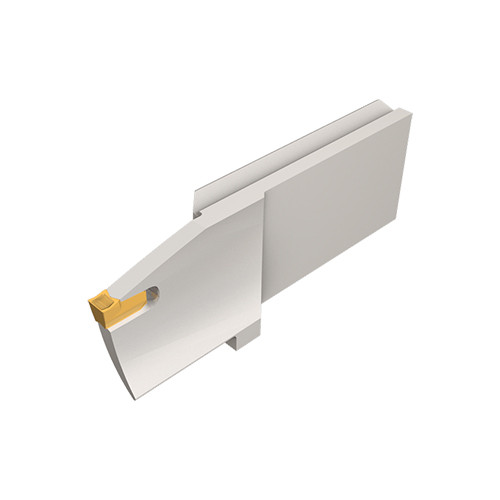

| Family Description | SELF-GRIP reinforced face grooving blades, used on standard tool blocks. | FamilyName | SGFFA |
| Remarks | Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated H dimension links blades and blocks | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2070
Name
Face Groove/Turn Indexable Holders
FamilyName
SGFFA
BrandName
Iscar
