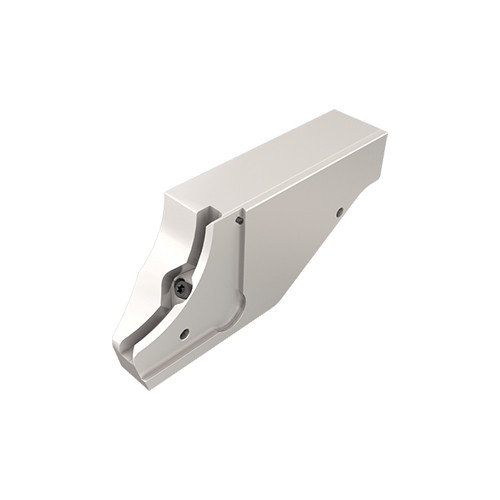

TGTBQ 25.4R-D65-ECD-JHP
Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant.
Price: Log in For Price

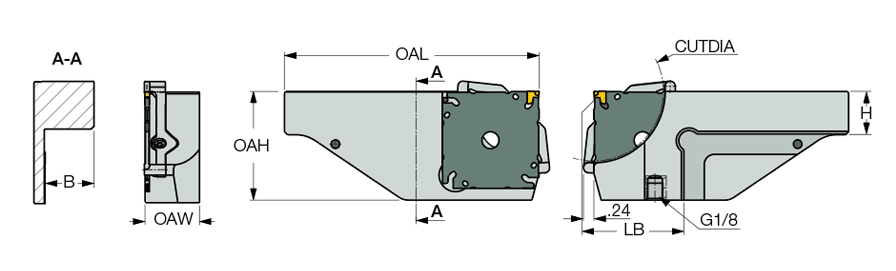

| Shank Height (H) | 1″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.559″ |
| Shank Width (B) | 1.023″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.472″ | Tool Assembly Length (LTA) | 0.523″ |
| Overall Height (OAH) | 2.165″ | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant. | FamilyName | TGTBQ-ECD-JHP (JET-CROWN) |

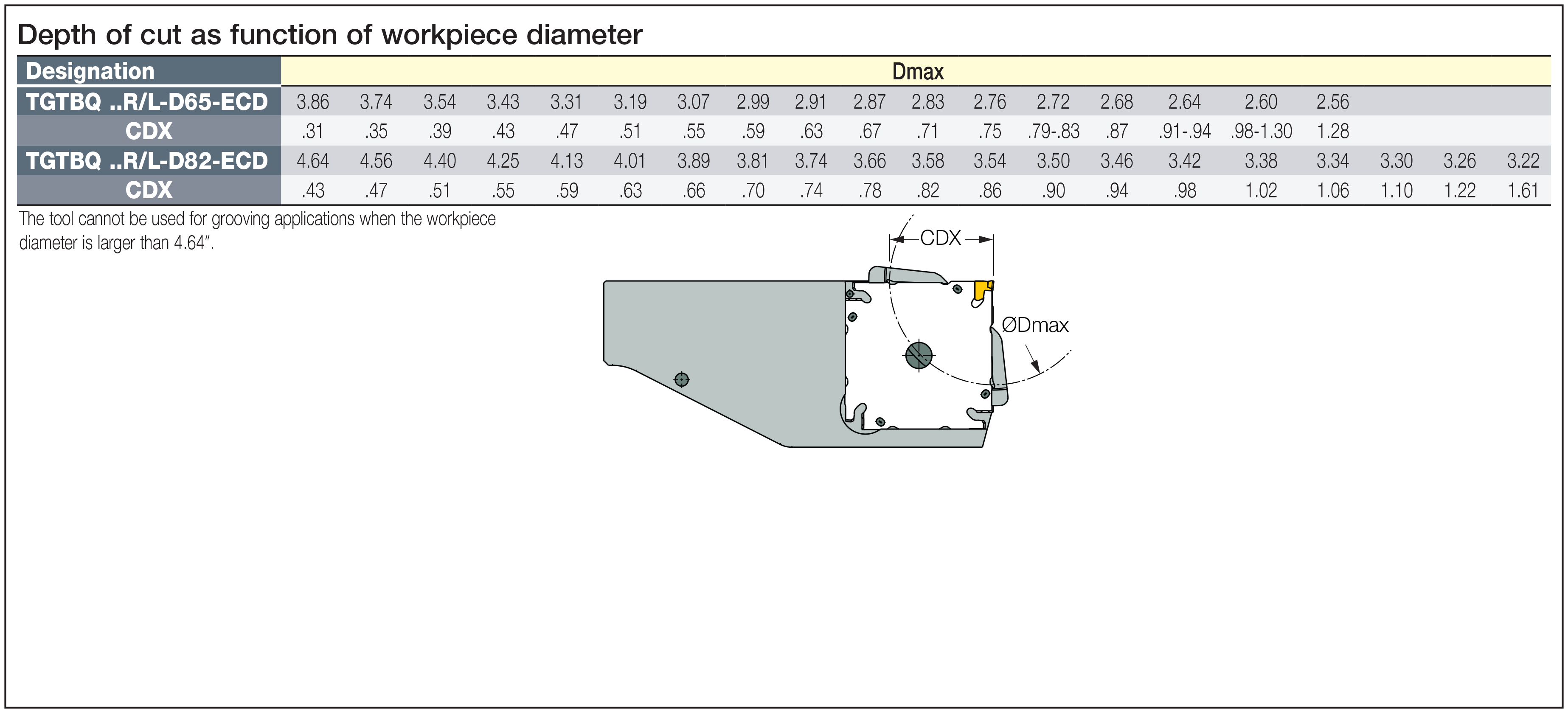

| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 4.64 A separate crown for each insert width should be ordered separately. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.4295
Name
Parting Off Indexable Holders
FamilyName
TGTBQ-ECD-JHP (JET-CROWN)
BrandName
Iscar
