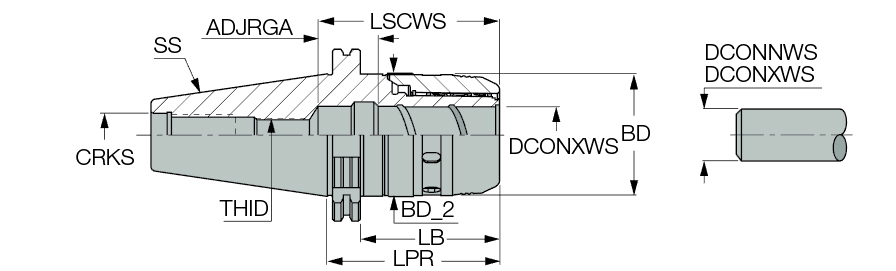

| Body Diameter (BD) | 69 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Protruding Length (LPR) | 106 mm | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
| Shank Size (SS) | 40 | Connection Code Machine Side (CCMS) | DIN69871 |
| Tool Type | DIN 69871 | Unit | M |
Product Features

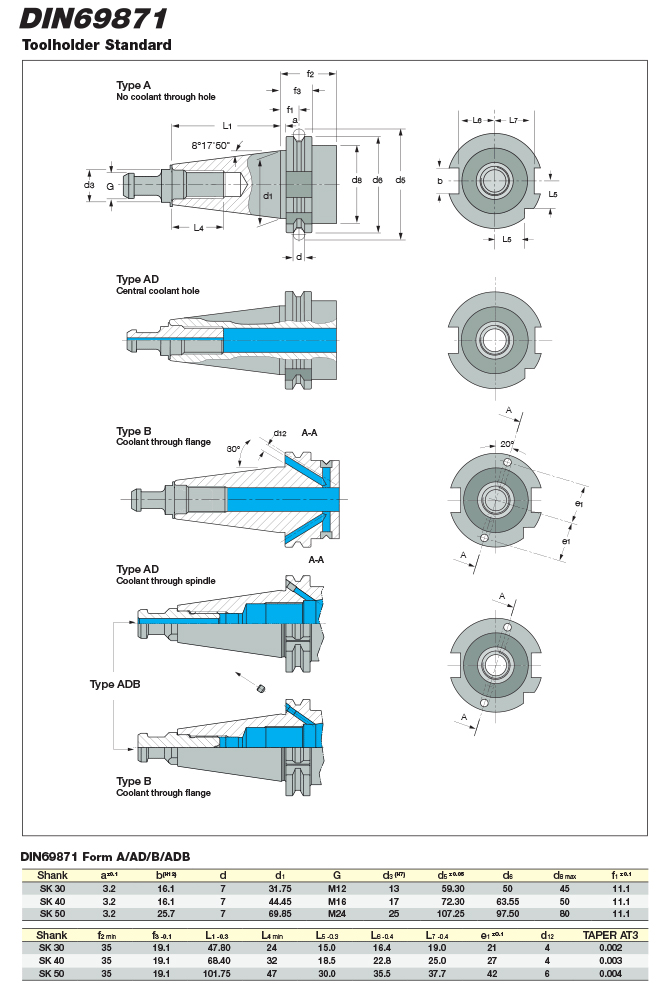

| Family Description | Power chucks with DIN 69871 form AD/B taper shanks | FamilyName | DIN69871-MAXIN |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. B is the designation for coolant through flange . | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.4430
Name

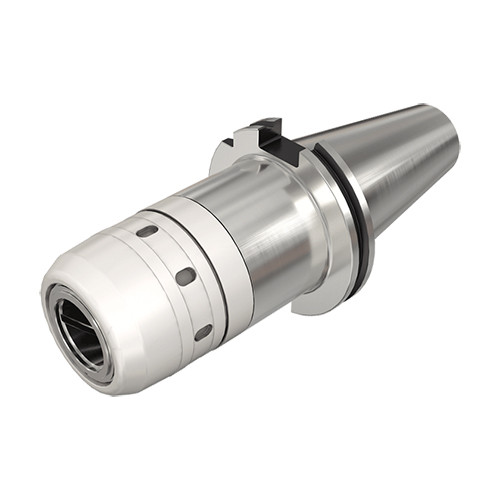

Milling Chucks
FamilyName
DIN69871-MAXIN
BrandName
Iscar
Related Documentation
