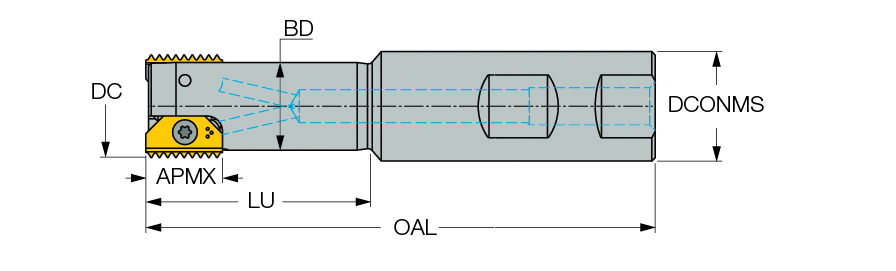

| Cutting Diameter (DC) | 1.56″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 1.181″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 5-1/8″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 2.84″ | Body Diameter (BD) | 1.18″ |
| Shank Type | Weldon | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Multi insert threading endmills with Weldon shanks. | COO | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Weight per item
1.7924
