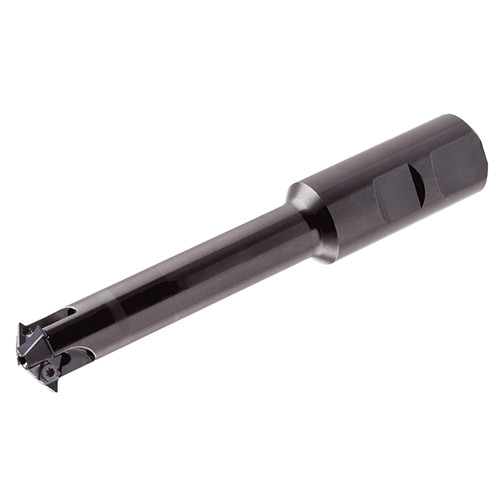

MTSR 0580 M11U
Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts.
Price: Log in For Price
| Cutting Diameter (DC) | 0.58″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 5.9″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 1 | Measurement Type | Inch |
| Usable Length (LU) | 2.16″ | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts. | COO | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Weight per item
0.3594
