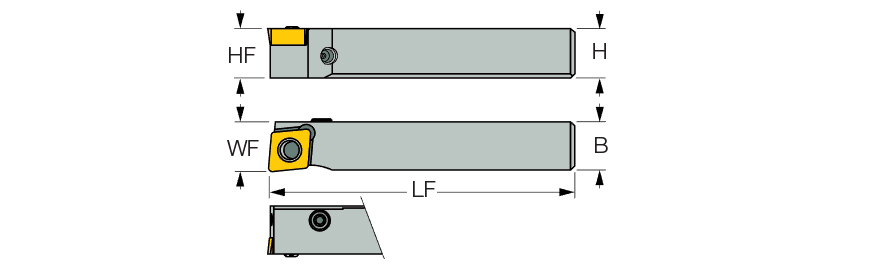

| Shank Height (H) | 1/2″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 5.9″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 1/2″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CC.. 3 | Unit | I |
Product Features

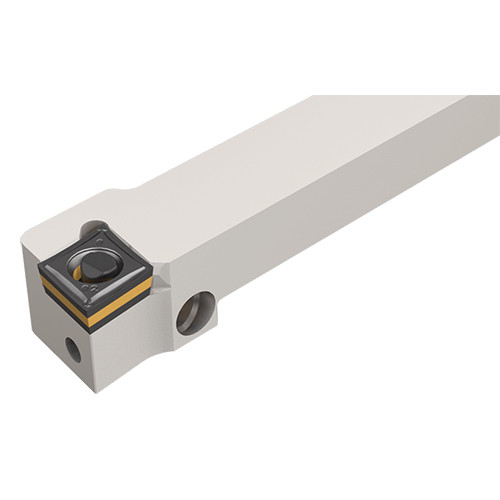

| Family Description | Side lever lock tools carrying 80° positive rhombic inserts for Swiss automatic machines. | FamilyName | PCLCR/L-S |
| Remarks | The clamping screw may by transferred to the opposite side if needed | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.4674
Name
General Indexable Turning Tools
FamilyName
PCLCR/L-S
BrandName
Iscar
