DNMG 110404-NF IC907

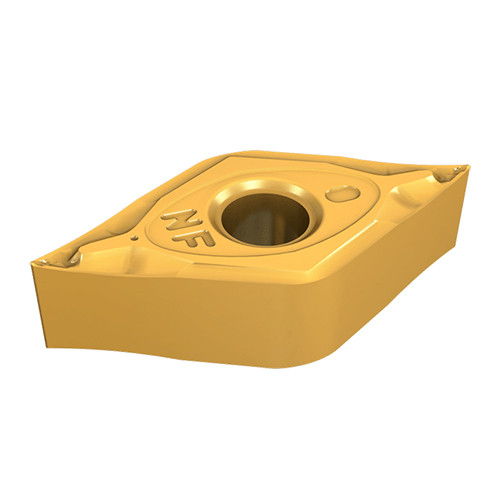

Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.8 mm |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Size | 331-NF | Max. Turning Feed (ft(max)) | 0.25 mm/rev |

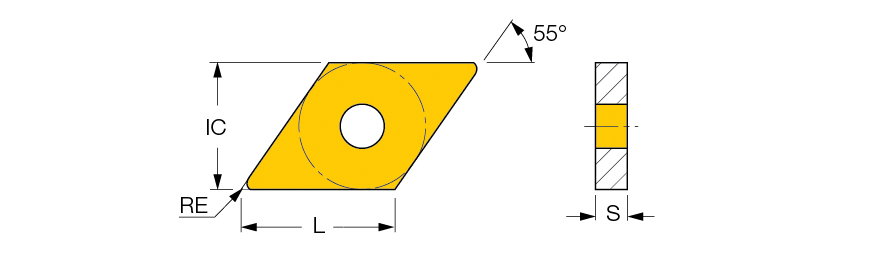

| Cutting Edge Length (L) | 11.63 mm | Clearance Angle Major (AN) | 0 Degrees |

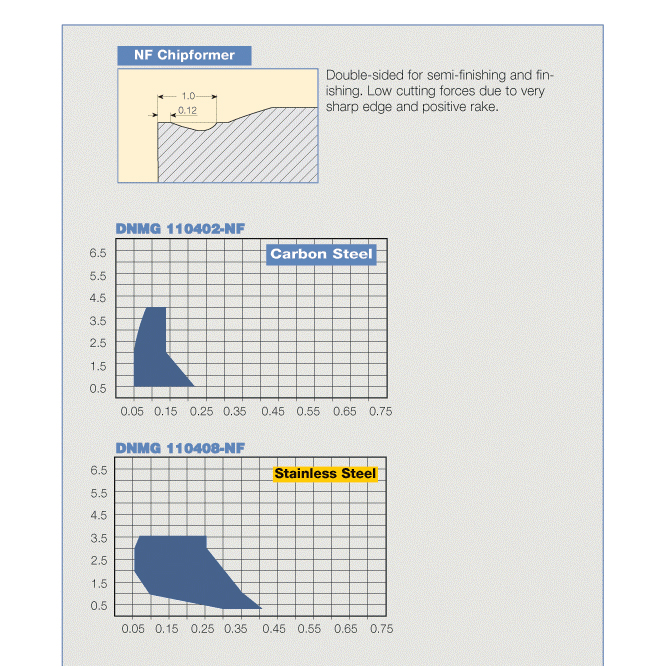

| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC907 |
Product Features
| Family Description | Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | FamilyName | DNMG-NF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0081
Name
Turning Indexable Inserts
FamilyName
DNMG-NF
BrandName
Iscar
