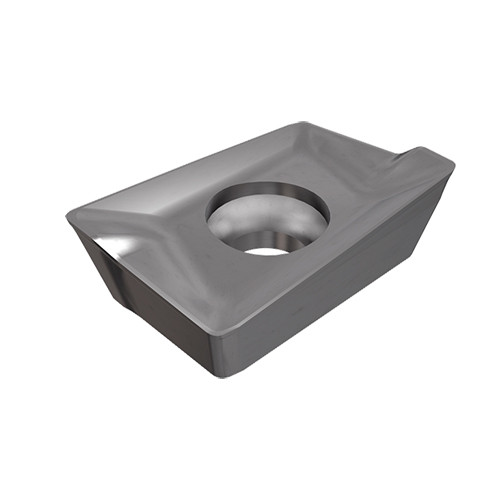

APKT 1003PDTL-RM IC328
HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Left Hand |
| Application | | Bottom Shouldering | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Edge Material | Carbide |

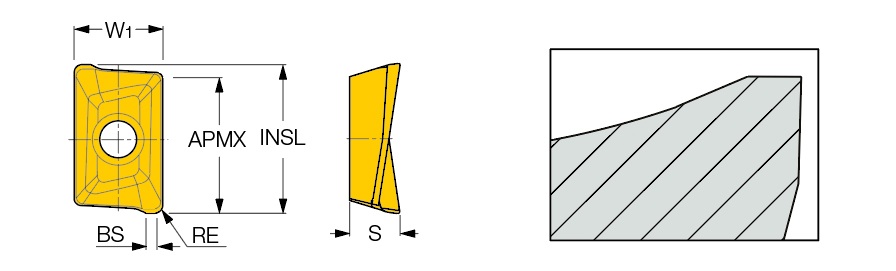

| Insert Length (INSL) | 11 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.7 mm | Cutting Edge Effective Length (LE) | 9.8 mm |
| Insert Thickness (S) | 3.47 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
Product Features

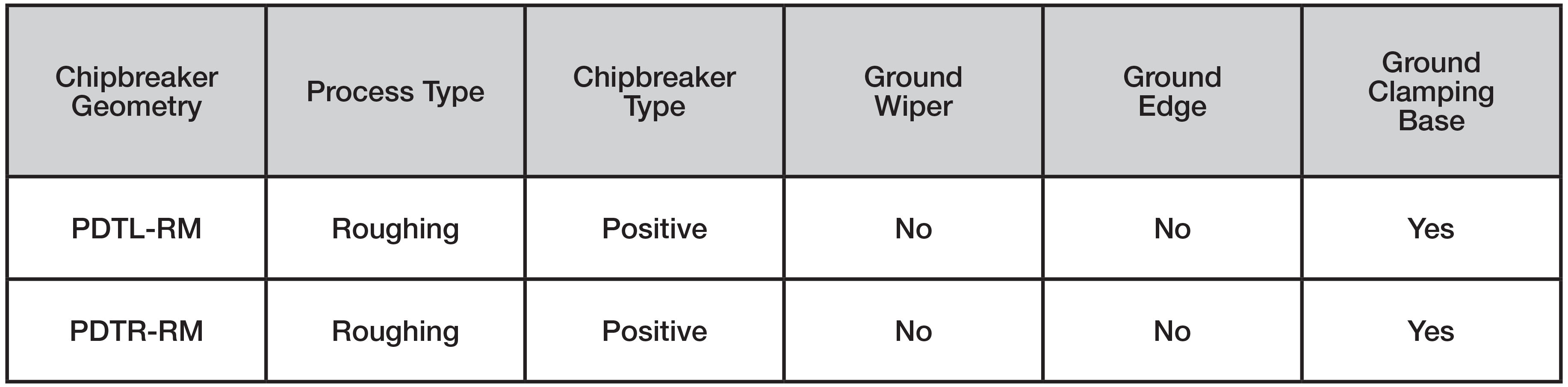

| Family Description | HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining. | FamilyName | APKT 1003PDTR/L-RM |
| Remarks | APKT...L should be used only on left-hand tools. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0031
Name
Milling Indexable Inserts
FamilyName
APKT 1003PDTR/L-RM
BrandName
Iscar
