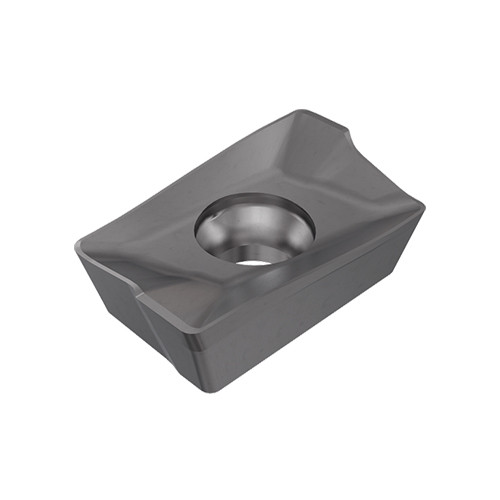

HM90 APKT 1003PDR IC882
HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications.
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

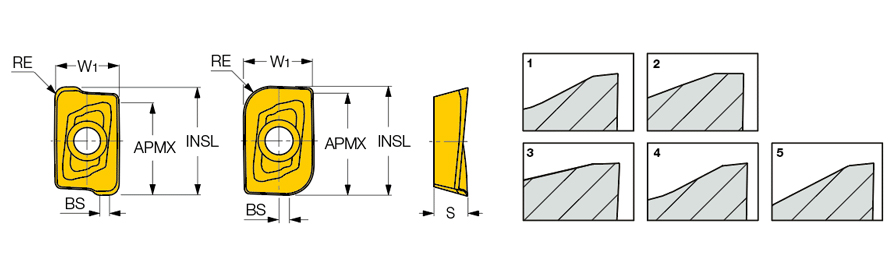

| Insert Length (INSL) | 11.45 mm | Figure | 1 |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.76 mm | Cutting Edge Effective Length (LE) | 10.26 mm |
| Insert Thickness (S) | 3.53 mm | Measurement Type | Metric |
| Coating | AlTiN+TiAlSiN+TiSiN | Body Material | Carbide |
| Grade | IC882 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications. | FamilyName | HM90 APKT 1003 |

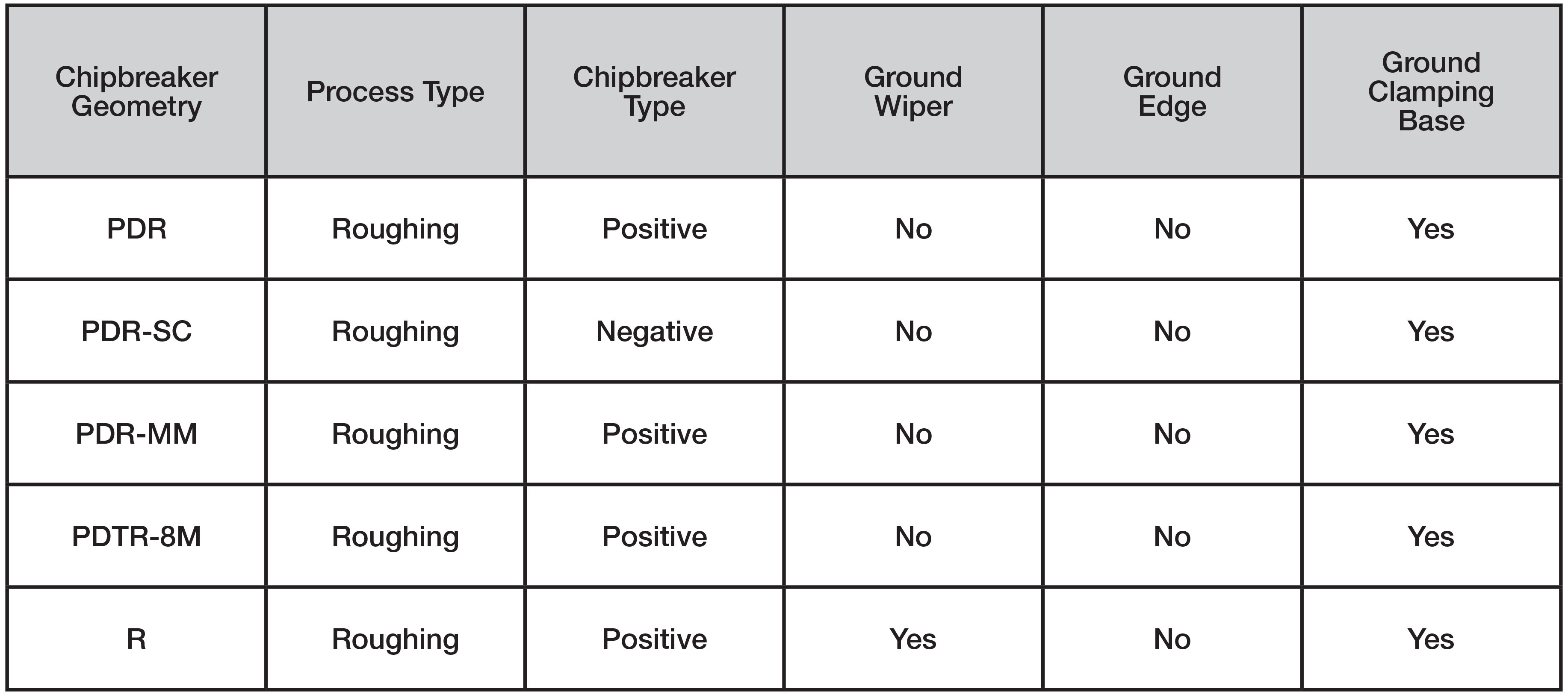

| Remarks | For inserts with corner radii larger than 1.5 mm, the cutter body should be modified. For chip former details Click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0037
Name
Milling Indexable Inserts
FamilyName
HM90 APKT 1003
BrandName
Iscar
