HCM D1.0-D-L10.-C1.25

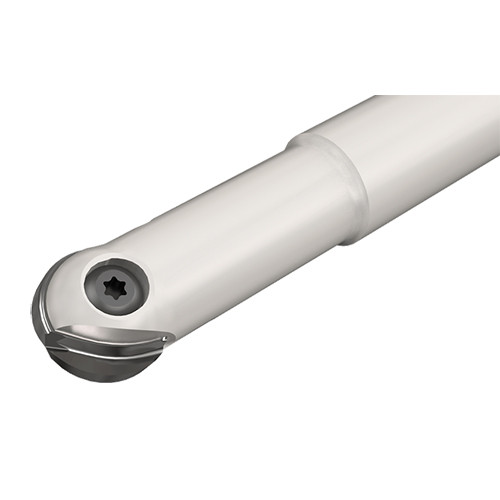

Ball nose multifunction endmills D=1.000″. Each tool can carry various milling insert geometries.
Price: Log in For Price

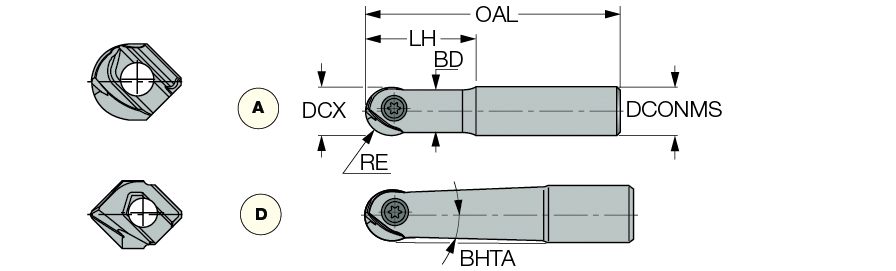

| Cutting Diameter (DC/DCX) | 1″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 1″ | Torque (TQ) | 12 lbfxin |
| Cutting Item Count (CICT) | 1 | Corner Radius (RE) | 1/2″ |
| Depth of Cut Maximum (APMX) | 0.67″ | Body Half Taper Angle (BHTA) | 1.6 Degrees |
| Overall Length (OAL) | 10″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Front Type | D |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HBR D1.0-QF | Body Material | Steel |
| Head Length (LH) | 5″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Unit | I |
| Usable Length (LU) | 5″ |
Product Features
| Family Description | Ball nose multifunction endmills D=1.000″. Each tool can carry various milling insert geometries. | FamilyName | HCM D1.0 |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.9961
Name
Indexable End Mills
FamilyName
HCM D1.0
BrandName
Iscar
