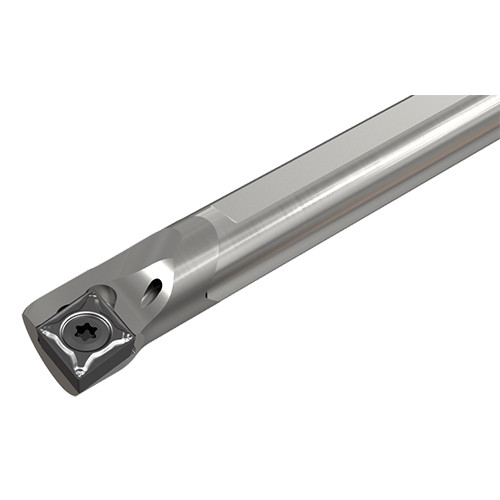

A-SCLCL 16-3
Screw lock boring bars for 80° rhombic inserts with 7° clearance
Price: Log in For Price

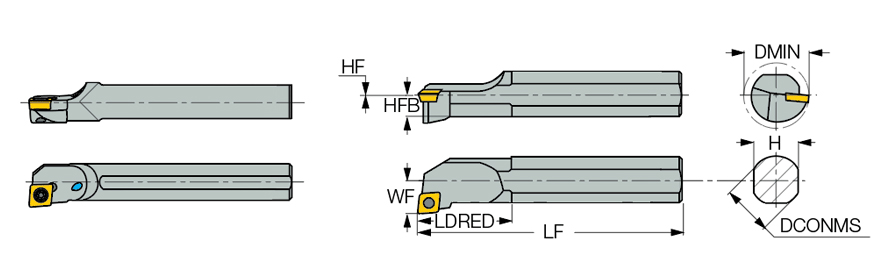

| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 7″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1-3/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.975″ | Rake Angle Radial (GAMF) | -4 Degrees |
| Functional Width (WF) | 0.687″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CC.. 3 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-1/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
Product Features
| Family Description | Screw lock boring bars for 80° rhombic inserts with 7° clearance | FamilyName | A/E/S-SCLCR/L |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
1.4639
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-SCLCR/L
BrandName
Iscar
