MF FHX D4.00-09-1.50-R06

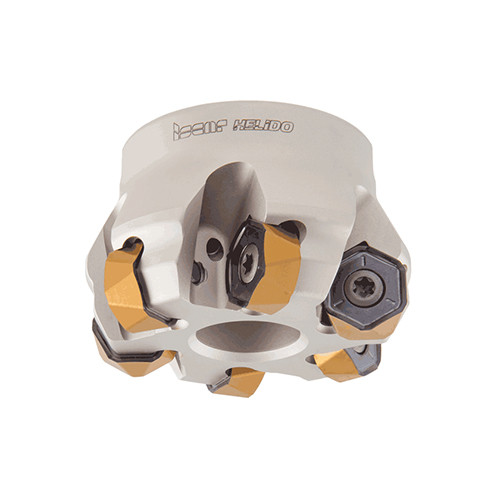

34° face mills carrying hexagonal inserts with 12 cutting edges.
Price: Log in For Price

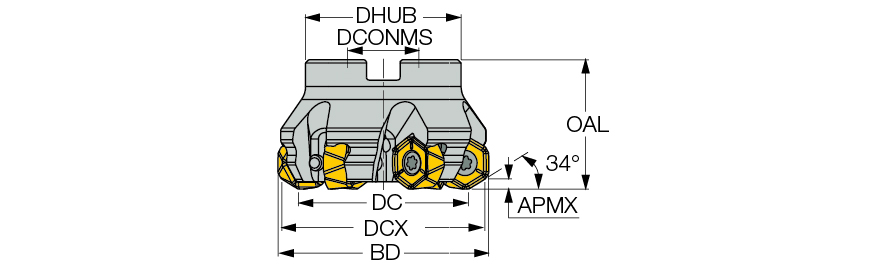

| Cutting Diameter (DC/DCX) | 4.09″ | Master Insert Identification (MIID) | H1200 HXCU 0606-HPR |
| Cutting Diameter (DC) | 3.62″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 4.09″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 34 Degrees |
| Hub Diameter (DHUB) | 3-1/4″ | Tool Type | 45° Facemills |
| Arbor Style | B | Unit | I |
Product Features
| Family Description | 34° face mills carrying hexagonal inserts with 12 cutting edges. | FamilyName | MF FHX-R06 |
| Remarks | Radius for programming according to D1 diameter is .213 When machining next to shoulders, maximum width of cut should be 0.3xD To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.9705
Name
Indexable Face Mills
FamilyName
MF FHX-R06
BrandName
Iscar
