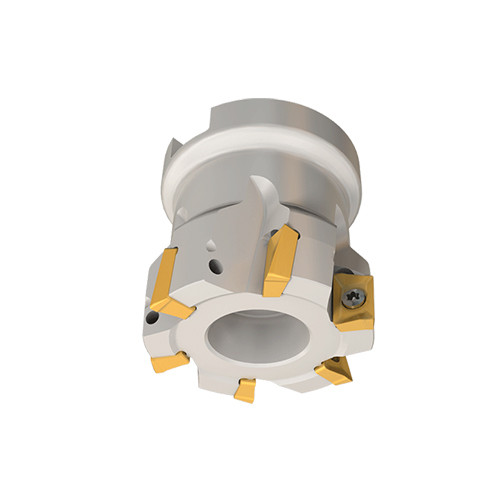

HM90 F90AP D3.00-8-1.00
HELI2000, 90° face mills carrying HM90 APKT 1003... inserts.
Price: Log in For Price

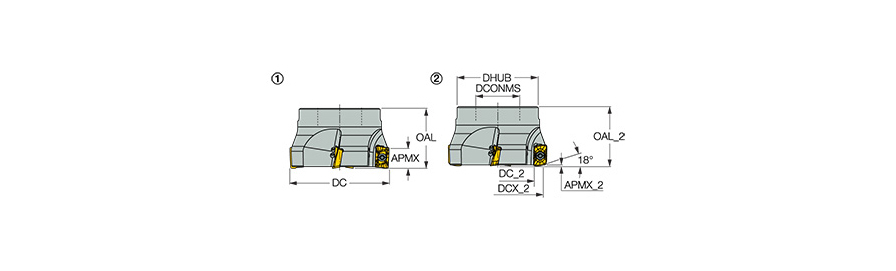

| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.39″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.736″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.76″ | Tool Type | 90° Facemills |

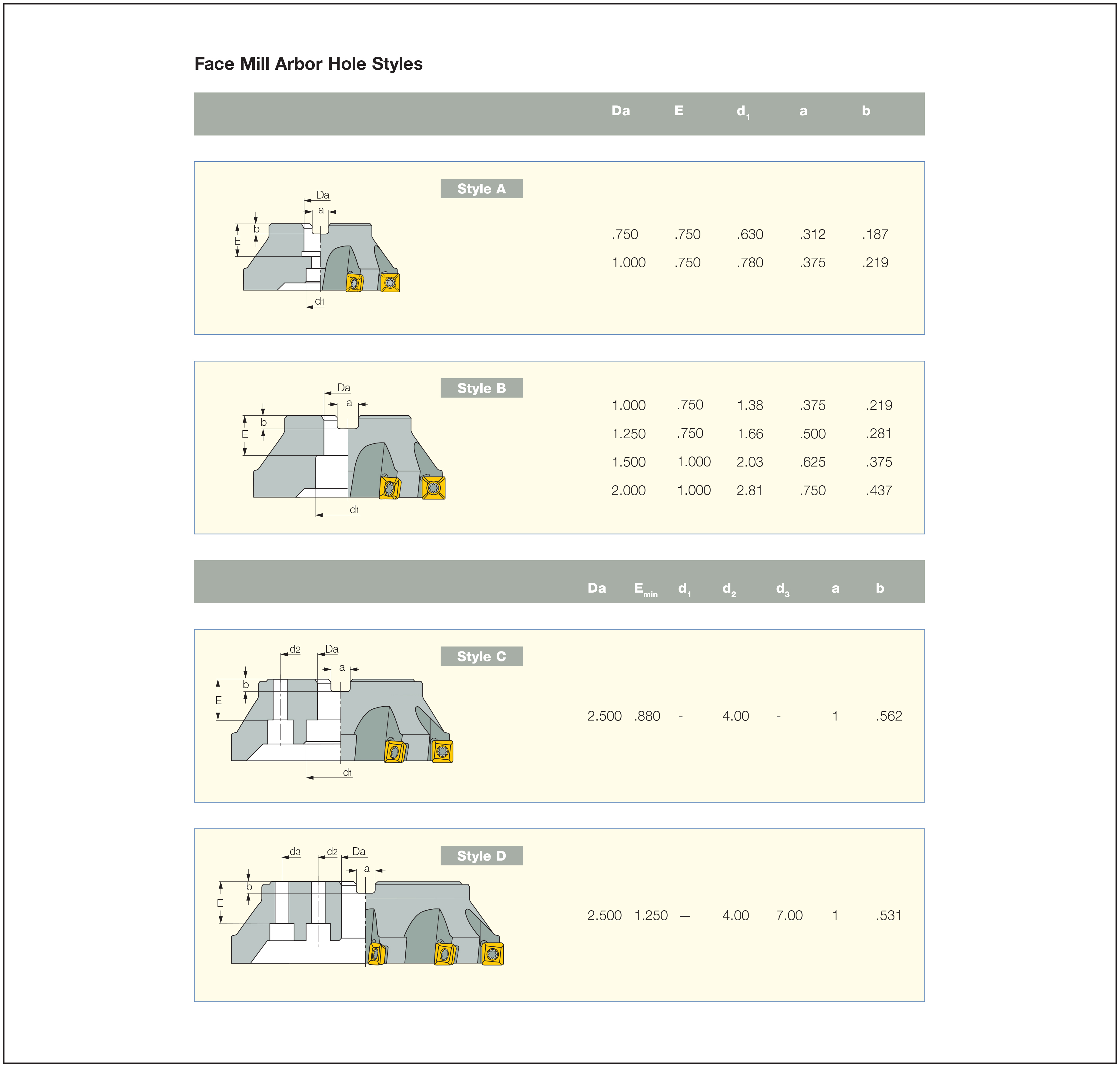

| Arbor Style | A | Unit | I |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 APKT 1003... inserts. | FamilyName | HM90 F90AP-10 |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.4119
Name
Indexable Face Mills
FamilyName
HM90 F90AP-10
BrandName
Iscar
