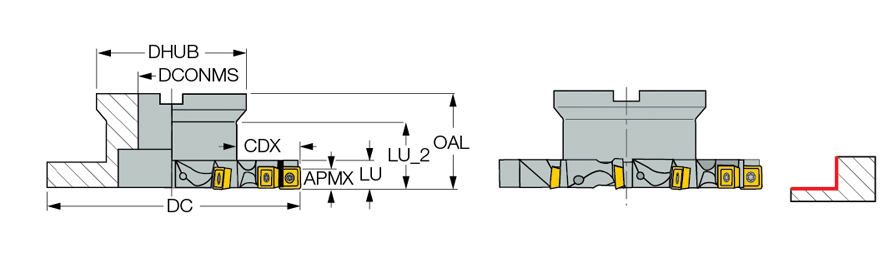

| Cutting Diameter (DC) | 5″ | Overall Length (OAL) | 1-3/4″ |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Application | | Facing | Shouldering | Side Slotting | |

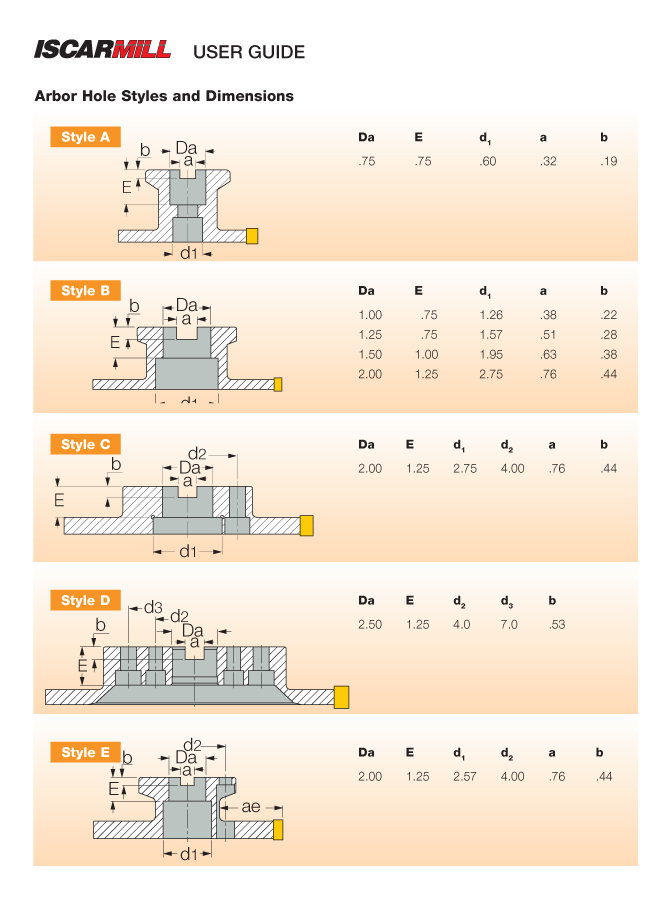

| Depth of Cut Maximum (APMX) | 0.37″ | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 1.41″ | Tool Type | Half-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.56″ | Body Material | Steel |
| Usable Length (LU) | 1/2″ | Unit | I |
Product Features
| Family Description | Bottom-side cutting, flanged type slotting cutters. | FamilyName | FSB |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.2077
Name

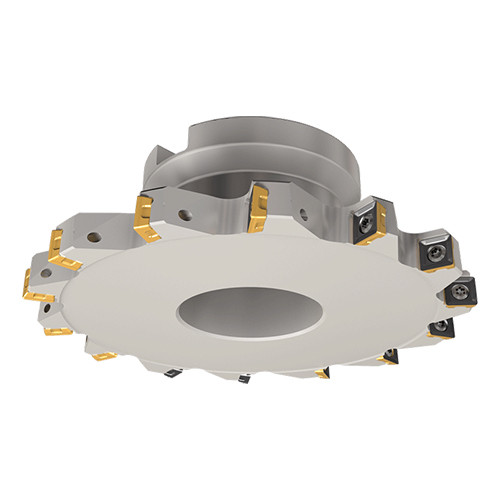

Disc w/Hole Indexable Slotting Cutters
FamilyName
FSB
BrandName
Iscar
