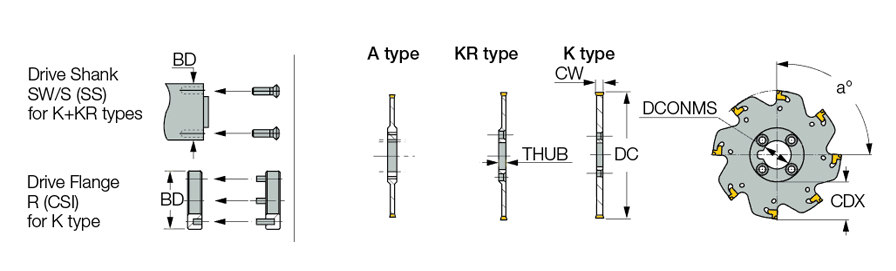

| Cutting Diameter (DC) | 2.99″ | Master Insert Identification (MIID) | TAG N1.6C |
| Cutting Item Count (CICT) | 8 | Application | | Side Slotting | Slitting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Rotational Speed Maximum (RPMX) | 1050 Rev/min |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Slitting cutters |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.54″ | Body Material | Steel |
| Hub Thickness (THUB) | 0.05″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Maximum (CWX) | 0.065″ | Unit | I |
| Cutting Width Minimum (CWN) | 0.06″ |
Product Features

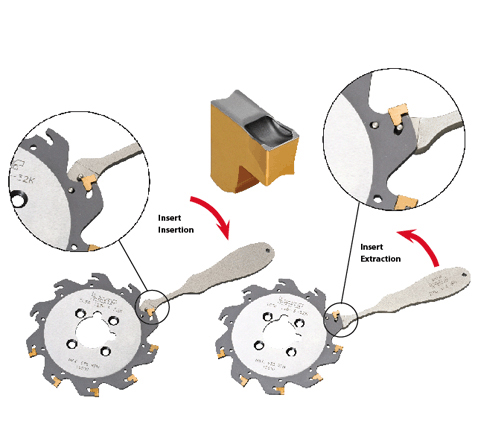

| Family Description | TANGSLIT slitting cutters carrying TANG-GRIP inserts. | FamilyName | TGSF |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2006
Name

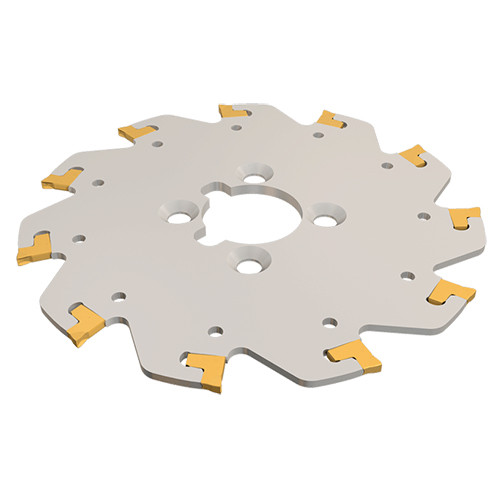

Disc w/Hole Indexable Slotting Cutters
FamilyName
TGSF
BrandName
Iscar
